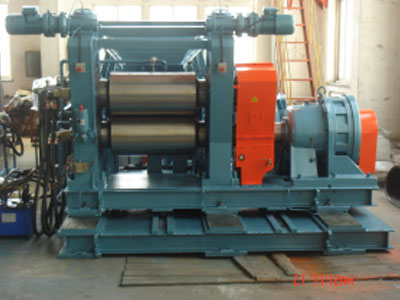

XJY-210 Rubber purifier



product description：

Features：

Application：

• 1. Regular model of Twin-screw extruding and sheeting machine is used for extruding and sheeting mixed rubber compound. It is most advanced,high speed and efficient equipment of underneath auixliary machine for Internal mixer. It is the key machine in the mixing production line.
• 2. New multi-funciton model-can be used as down auxiliary machine for internal mixer(kneader) for mixing,sulfur adding and rubber sheeting.



Specigications：Φ150×400-Φ416×936；Conventionalmodel,multi-function model.

Ttem \ Mode		XJY-150×400	XJY-210×568	XJY-330×743	XJY-416×936
Screw diameter(mm)		Φ150×400	Φ210×568	Φ330×743	Φ416×936
Extruding motor power (KW)		18.5	55	132/160	200
Roll specification (mm)		Φ360×720	Φ400×820	Φ450×1000	Φ500×1100
Product thickness (mm)		3-10	3-10	3-10	3-10
Product width(mm)		500	550	600	700
Calendering motro power (KW)		11	37	132/160	200
Max extrusion capacity compound proporton 1:1.15		2980	4500	9000	11000
size	L mm	3385	3000	4000	4700
	W mm	2500	4000	5000	6000
	H mm	1725	2500	3000	3200
Total Weight (kg)		8000	16000	32000	40000
