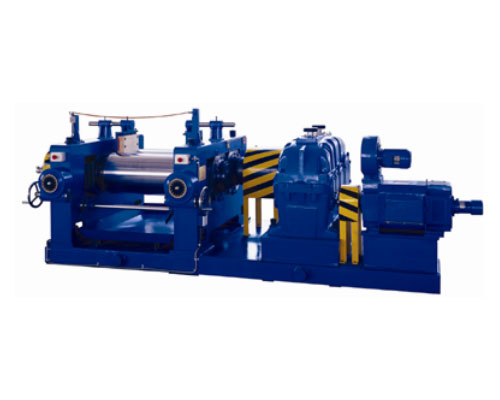

XK-230 Open mixing mill



product description：

Application：For plasticating and mixing rubber or plastics. Warming and sheeting rubber compounds,cracking and refining reclaimed rubbers.

Specification：Φ160-810;open mixing mills,sheeting mill,refining mill,cracking mill.

Safety Standard ：In company with the newest National Safety Standard GB-20055-2006

Ttem \ Mode		X(S)K-160	X(S)K-250	X(S)K-305	X(S)K-360	X(S)K-400	X(S)K-450
Roll specification (mm)		Φ160×320	Φ250×620	Φ305×760	Φ360×900	Φ400×1000	Φ450×1200
Max feeding quantity(kg/batch)		4	15	20	30	40	55
Front roll speed (m/min)		10	16.96	16.3	16.22	18.78	21.1
Speed ratio		1:1.21	1:1.08	1:1.15	1:1.22	1:1.17	1:1.17
Bearing		Roller bearing	Roller bearing	Roller bearing	Roller bearing	Roller bearing	Roller bearing
Motor power (KW)		7.5	22	30	37	45	55
Size	L mm	1104	3230	3901	4140	4578	5035
	W mm	678	1166	1350	1574	1755	1808
	H mm	1258	1590	1680	1800	1805	1835
Total Weight(kg)		956	3150	4340	6892	9416	11400

Ttem \ Mode		X(S)K-550	X(S)K-610	X(S)K-660	X(S)K-710	X(S)K-760	X(S)K-810
Roll specification (mm)		Φ550×1500	Φ610×2000	Φ600×2130	Φ710×2200	Φ760×2400	Φ810×2540
Max feeding quantity(kg/batch)		90	150	210	280	360	400
Front roll speed (m/min)		25.8	28.4	29.8	30	30	30
Speed ratio		1:1.17	1:1.18	1:1.09	任意调节	1:1.09	1:1.09
Bearing		Roller bearing	Roller bearing	Roller bearing	Roller bearing	Roller bearing	Roller bearing
Motor power (KW)		110	160	250	160×2	355	500
Size	L mm	6058	7100	7240	7630	7540	8500
	W mm	2146	2438	3872	4790	4174	4800
	H mm	1800	1600	1840	1860	2025	2100
Total Weight(kg)		18635	26197	41656	47042	60000	70000
